Our Products

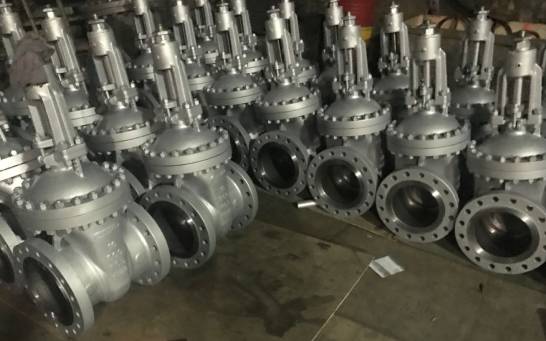

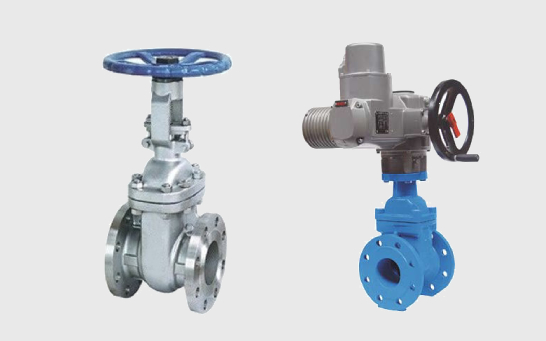

Gate Valves are used extensively throughout the hydrocarbon, energy and process industries.

Size: 2” up to 88“ (DN 50 up to DN 2200)

Pressure Rating:ASME 150# to 2500#

Materials: Carbon Steels, Low Temperature Carbon Steel, Martensitic Steels, Austenitic Stainless Steel, Duplex Stainless Steels, Super Duplex Stainless Steels, Nickel Alloys, Nickel Aluminum Bronze, Hastelloy, Inconel, Titanium Alloy & Carbon Steel with Internal Corrosion Resistant Alloy (CRA) Overlay

Design Standard: API 602, API 600, MESC SPE 77 / 101, MESC SPE 77 / 102, ASME B16.34

Pressure / Temperature Rating: ASME B 16.34

Test (Inspection) Standard: API 598, API 6D, MESC SPE 77/101, 77/ 102, ISO 5208, API6FA, ISO 10497, ISO 15848 – 1&2, Bs6364

Construction Details: Bolted Bonnet / Pressure Seal Bonnet, OS & Y Type Rising Stem

End Connection: Screwed, Socket Weld, Flanged, Hub End, Butt-Weld

Operator / Actuator: Lever, Gear, Actuator (Pneumatic, Hydraulic, Electro-Hydraulic and Electric Motorised)

Gate Valves are available in six different types :

  • Wedge type Bolted Bonnet
  • Wedge type pressure seal bonnet
  • Parallel Slide Bolted Bonnet
  • Parallel Slide Pressure Seal Bonnet
  • Conduit Bolted Bonnet Slab Gate
  • Conduit Bolted Bonnet Expanding Gate

Cryogenic Service: Almost all Ocean Valves Dual Plate Check Valve types can be designed in a special version suitable for cryogenic service. In this case, all the materials and technical features are designed to withstand minimum design temperature required by the Customer, down to Cryogenic -196°C. If the customer wishes, specific Cryogenic Tests are performed to verify the behaviour of valves sealing capability and emissions etc., vs the ambient.

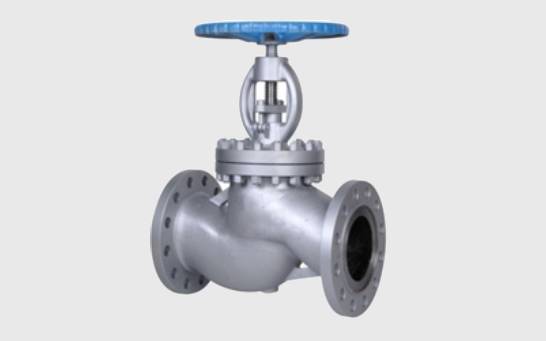

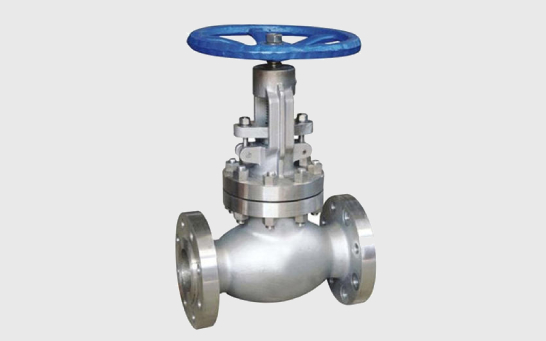

Globe Valves are extensively used through-out the hydrocarbon, energy and process & the power industries.

Size: ½” up to 24“ (DN 15 up to DN 600)

Pressure Rating:ASME 150# to 2500#

Materials: Carbon Steels, Low Temperature Carbon Steel, Martensitic Steels, Austenitic Stainless Steel, Duplex Stainless Steels, Super Duplex Stainless Steels, Nickel Alloys, Nickel Aluminum Bronze, Hastelloy, Inconel, Titanium Alloy & Carbon Steel with Internal Corrosion Resistant Alloy (CRA) Overlay

Design Standard: API 602, MESC SPE 77 / 103, BS 1873 DIN 3356

Pressure / Temperature Rating: ASME B 16.34

Test (Inspection) Standard: API 598, API 6D, MESC 77/103, ISO 5208, ISO15848 -1&2, BS 6364

Construction Details: Bolted Bonnet / Pressure Seal Bonnet, OS & Y Type Rising Stem

End Connection: Screwed, Socket Weld, Flanged, Hub End, Butt-Weld

Operator / Actuator: Lever, Gear, Actuator (Pneumatic, Hydraulic, Electro-Hydraulic and Electric Motorised)

Globe Valves are available in three different types:

  • Bolted Bonnet
  • Pressure seal
  • Bellows Seal

Cryogenic Service: Globe Valves can be designed in a special version suitable for cryogenic service. In this case, all the materials and technical features are designed to withstand minimum design temperature required by the Customer, down to Cryogenic -196°C. If required by the customer, specific Cryogenic Tests are performed to verify the behaviour of production valves in terms of valve torque, sealing capability, emissions vs the ambient.

Ocean Valves has extensive experience in manufacturing Piston, Swing, Tilting Disc and Non-Slam Check Valves for use in the hydrocarbon, energy and process industries.

Size: ½” up to 56“ (DN 15 up to DN 1400)

Pressure Rating:ASME 150# to 2500#

Materials: Carbon Steels, Low Temperature Carbon Steel, Martensitic Steels, Austenitic Stainless Steel, Duplex Stainless Steels, Super Duplex Stainless Steels, Nickel Alloys, Nickel Aluminum Bronze, Hastelloy, Inconnel, Titanium Alloy & Carbon Steel with Internal Corrosion Resistant Alloy (CRA) Overlay

Design Standard: API 602, API 6D, MESC SPE 77 / 132, BS 1868, DIN 3356, ISO15761

Pressure / Temperature Rating: ASME B 16.34

Test (Inspection) Standard: API 598, API 6D, MESC 77/132, ISO 5208, ISO15848-1&2, Bs6364

Construction Details: Bolted Cover / Pressure Seal Bonnet, Lift Check Type, Swing Check, Piston Check, Tilting Disc, Non – Slam Check

End Connection: Screwed, Socket Weld, Flanged, Hub End, Butt-Weld

Operator / Actuator: Lever, Gear, Actuator (Pneumatic, Hydraulic, Electro-Hydraulic and Electric Motorised)

Check Valves are available in six different types:

  • Swing Type Bolted Bonnet
  • Piston type check valves
  • Non-Slam Check Valves
  • Tilting Disc type Pressure Seal Bonnet
  • Nozzle type

Cryogenic Service:Almost all Ocean Check Valve can be designed in a special version suitable for cryogenic service. In this case, all the materials and technical features are designed to withstand minimum design temperature required by the Customer, down to Cryogenic -196°C. If required by the customer, specific Cryogenic Tests are performed to verify the behaviour of valves sealing capability, emissions vs the ambient.

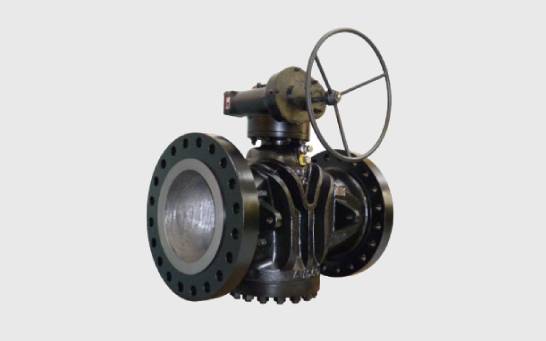

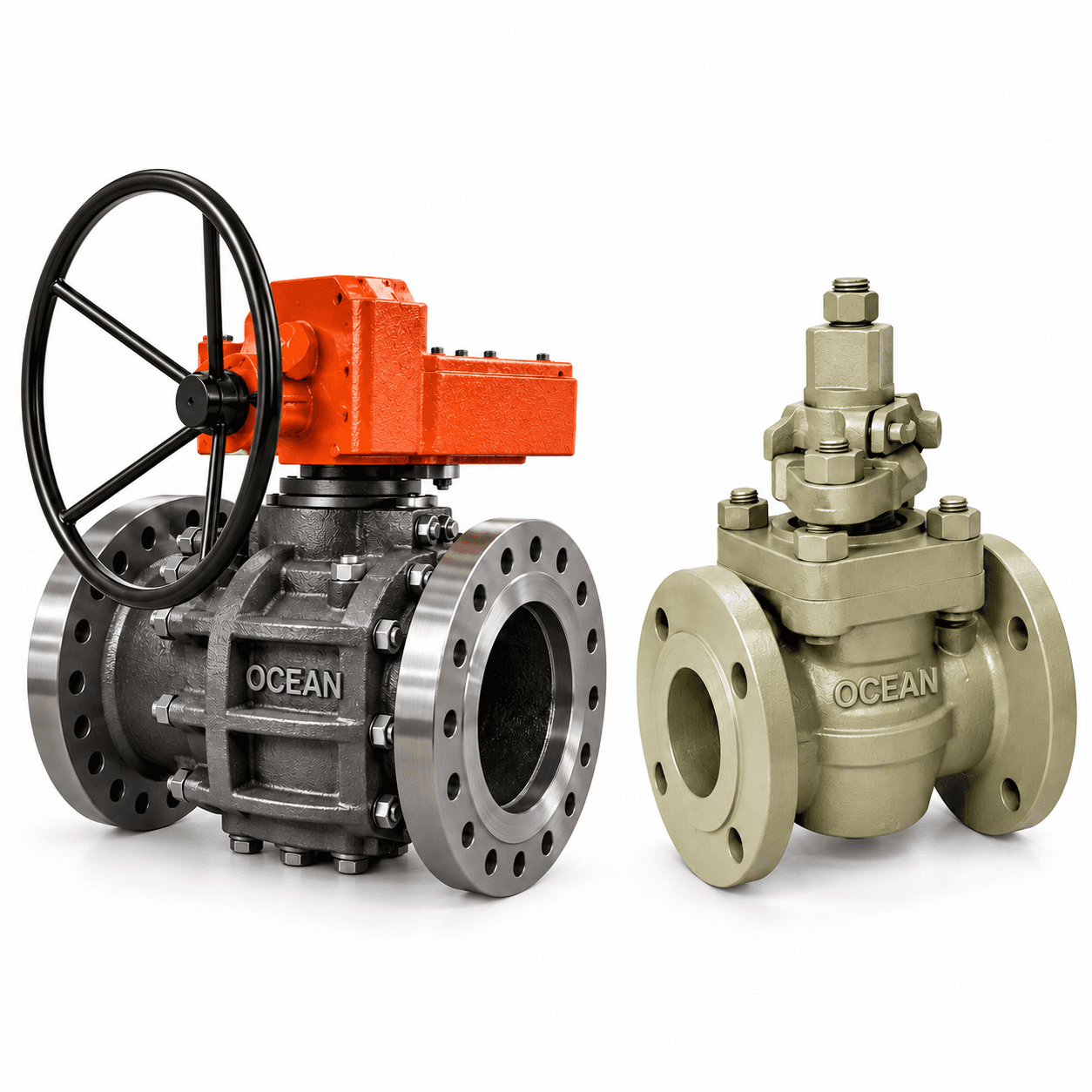

Design Features:

  • Manufacturing Standard –API 599/API 6D
  • Face to face as per ANSI B16.10, Short Pattern
  • Ends- Flanged and Drilled as per ASME B16.5 RF
  • Tested As per BS: 6755 Pert-1
  • Standard plug/pressure Balanced inverted plug
  • Also Available in class 1500, 2500

Material of Construction: Cast iron (ASTM A 126 CL B) Carbon Steel (ASTM A 216 Gr. WCB) Stainless Steel (CF8/CF8M/CF3/CF3M) Alloy steel Pressure Rating: 150/300/600/900 Size available: 1/2'' to 18''

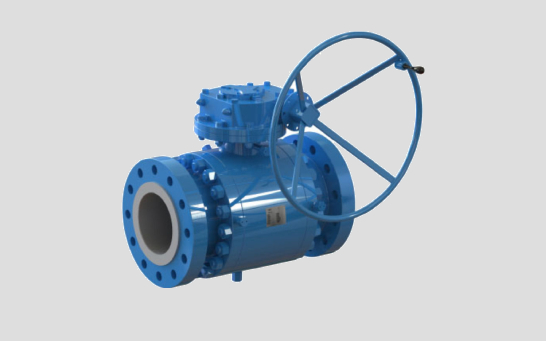

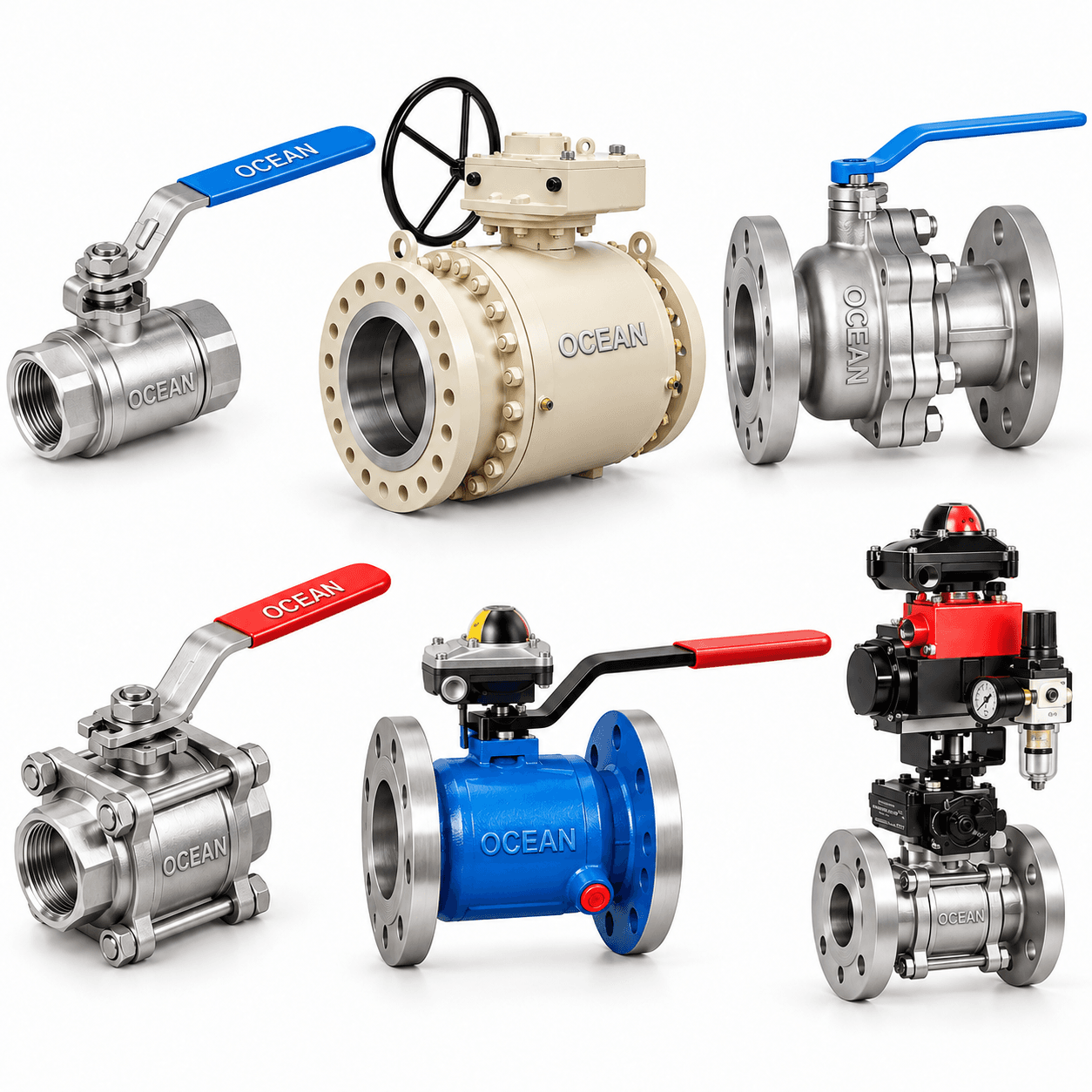

Ocean Valves has extensive experience in manufacturing Trunnion Mounted, Side & Top Entry Ball Valves, both Soft and Metal Seated.

Size: 2” up to 56“ (DN 50 up to DN 1400)

Pressure Rating: ASME 150# to 2500#, API 3000PSI to 20000PSI

Materials: Carbon Steels, Low Temperature Carbon Steel, Martensitic Steels, Austenitic Stainless Steel, Duplex Stainless Steels, Super Duplex Stainless Steels, Nickel Alloys, Nickel Aluminum Bronze, Hastelloy, Inconel, Titanium Alloy & Carbon Steel with Internal Corrosion Resistant Alloy (CRA) Overlay.

Design Standard: API 6D, API 608, MESC SPE 77 / 130 API6DSS, MESC SPE 77/210

Pressure / Temperature Rating: ASME B 16.34

Test (Inspection) Standard: API6DSS, API 598, API 6D, ISO 5208, MESC SPE 77/132, 77 / 300, 77/312, 77/200, 77/210, API 6FA, ISO 10497, API607, ISO 15848-1&2, BS 6364

Construction Details: Single / Two / Three Piece Design / Side Entry / Trunnion / Block & Bleed / Soft and Metal Seated

End Connection: Screwed, Socket Weld, Flanged, Hub End, Butt-Weld

Operator / Actuator: Lever, Gear, Actuator (Pneumatic, Hydraulic, Electro-Hydraulic and Electric Motorised)

Special Design Feature also available:

  • Cryogenic Design
  • Subsea Design
  • Stem Extension
  • Single & Double Piston Seat Design
  • Primary Metal and Secondary Soft Seat Design
  • Emergency Seat and Stem Lubricant Injection

Size: 1 13/16” upto 30”

Pressure Rating: API 3000 PSI to 20000 PSI

Materials: All Material Classes as per API 6A and also Special Materials with Overlay.

Design Standard: API 6A

Pressure / Temperature Rating: API 6A

Test (Inspection) Standard: API 6A

Construction Details: Single / Two / Three Piece Design / Side Entry / Trunnion / Block & Bleed / Soft and Metal Seated

End Connection:Flanged, Hub End, Butt-Weld

Operator / Actuator: Lever, Gear, Actuator (Pneumatic, Hydraulic, Electro-Hydraulic and Electric Motorised)

Special Design Feature also available :

  • Extremely High Temperature
  • Cryogenic Design
  • Subsea Design

Size: 1 13/16” upto 30”

Pressure Rating: API 3000 PSI to 20000 PSI

Materials: All Material Classes as per API 6A and also Special Materials with Overlay.

Design Standard: API 6A

Pressure / Temperature Rating: API 6A

Test (Inspection) Standard: API 6A

Construction Details: Bolted Bonnet / Pressure Seal Bonnet, Non Rising Stem

End Connection: Flanged, Hub End, Butt-Weld

Operator / Actuator: Lever, Gear, Actuator (Pneumatic, Hydraulic, Electro-Hydraulic and Electric Motorised)

Special Design Feature also available :

  • Extremely High Temperature
  • Cryogenic Design
  • Subsea Design

HIGH PRESSURE HIGH TEMPERATURE (HPHT) GLOBE VALVES, MANUFACTURED AS PER API 6A

Size: 1 13/16” upto 30”

Pressure Rating: API 3000 PSI to 20000 PSI

Materials: All Material Classes as per API 6A and also Special Materials with Overlay.

Design Standard: API 6A

Pressure / Temperature Rating: API 6A

Test (Inspection) Standard: API 6A

Construction Details: Bolted Bonnet / Pressure Seal Bonnet, Non Rising Slem

End Connection: Screwed, Socket Weld, Flanged, Hub End, Butt-Weld

Operator / Actuator: Lever, Gear, Actuator (Pneumatic, Hydraulic, Electro-Hydraulic and Electric Motorised)

Special Design Feature also available :

  • Extremely High Temperature
  • Cryogenic Design
  • Subsea Design

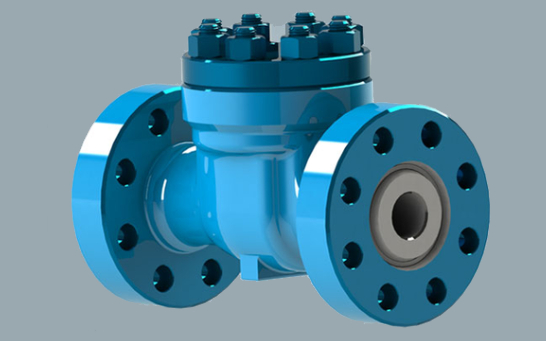

Size: 1 13/16” upto 30”

Pressure Rating: API 3000 PSI to 20000 PSI

Materials: All Material Classes as per API 6A and also Special Materials with Overlay.

Design Standard: API 6A

Pressure / Temperature Rating: API 6A

Test (Inspection) Standard: API 6A

Construction Details: Bolted Cover / Pressure Seal Bonnet, Swing, Piston Lift, Dual Plate, Non-Slam Axial, Tilting Disc.

End Connection: Flanged, Hub End, Butt-Weld

Operator / Actuator: Lever, Gear, Actuator (Pneumatic, Hydraulic, Electro-Hydraulic and Electric Motorised)

Special Design Feature also available :

  • Extremely High Temperature
  • Cryogenic Design
  • Subsea Design

Ask for our qualification range.

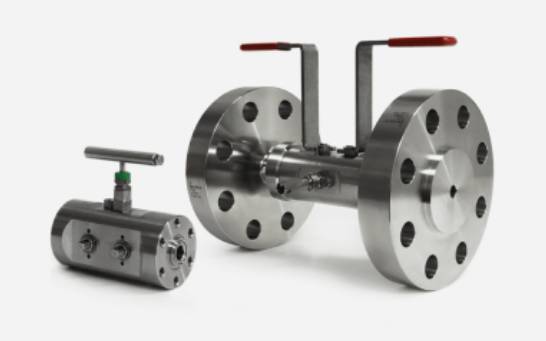

Size: 1 13/16” upto 30”

Pressure Rating: API 3000 PSI to 20000 PSI

Materials: All Material Classes as per API 6A and also Special Materials with Overlay.

Pressure / Temperature Rating: ASME B 16.34

Construction Details: Ball/Needle/Ball, Ball/Ball/Ball, Needle/Needle/Needle, Globe/Needle/Globe.

Operator: Lever, Gear, Actuator (Pneumatic, Hydraulic, Electro-Hydraulic and Electric Motorised)

Special Design Feature also available :

  • Extremely High Temperature
  • Cryogenic Design
  • Subsea Design

Ask for our qualification range.

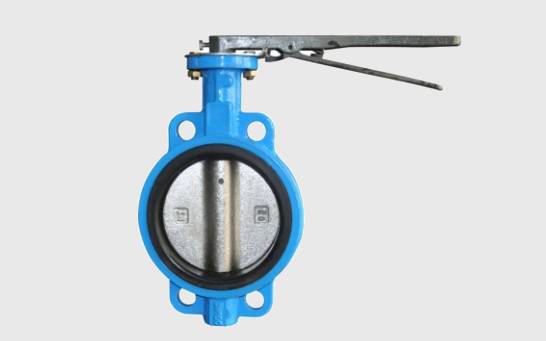

Design Features:

  • Manufacturing Standard –AWWA C 504/BS 5155
  • Ends Flanged & Drilled as per ASME B 16.5, Class-150, R.F.
  • Testing as per BS: 6755 part-1
  • Can be provide with gear, Limit Switches, Pneumatic Single/Double Acting Cylinder, Actuators
  • Lug type design on request

Material of Construction: Cast iron, Carbon Steel, Stainless Steel (CF8/CF8M) Pressure Rating: Class PN10/PN16 Size available: 1 ½'' to 48''

Ocean Valves is a specialist in quick-operating HIPPS Valves which are essential in Integrated Protective Function use as a Safety Device. Advanced design and simulation software such as CFD®, ANSYS® (FEA) and Solid Works® to simulate product flow, mechanical status and wear condition. Our HIPPS products can help to increase production and reliability, extend running time and reduce maintenance – in short, our HIPPS Valves make your system safe. Moreover, ocean Valves’ R&D and Technical Team is developing new solutions with the enhancement of processing technologies in Oil and Gas, Hydrocarbon Industry to further this technology and provide even safer products.

Size: 2” upto 56” (DN50 upto Dn1400)

Pressure Rating: ASME 1500# to 2500# and API 3,000 psi to API 20,000 psi.

Materials: Carbon Steels, Low Temperature Carbon Steel, Martensitic Steels, Austenitic Stainless Steel, Duplex Stainless Steels, Super Duplex Stainless Steels, Nickel Alloys, Nickel Aluminum Bronze, Hastelloy, Inconnel, Titanium Alloy & Carbon Steel with Internal Corrosion Resistant Alloy (CRA) Overlay

Design Standard: SIL3, API 6D, API 608, MESC, ANSI, & ASME B16.34

Pressure / Temperature Rating: SIL3 / ASME B 16.34

Test (Inspection) Standard: SIL3, API 6D, MESC, ISO 5208, API 6FA, ISO 10497, API607, ISO 15848-1&2, BS 6364

Construction Details: Single / Two / Three Piece Design / Side Entry / Trunnion / Block & Bleed / Soft and Metal Seated

End Connection: Screwed, Socket Weld, Flanged, Hub End, Butt-Weld

Operator / Actuator: Lever, Gear, Actuator (Pneumatic,Hydraulic, Electro-Hydraulic and Electric Motorised)

Special Design Feature also available :

  • Extremely High Temperature
  • Cryogenic Design
  • Subsea Design

Cryogenic Service: Almost all ocean Valves Dual Plate Check Valve types can be designed in a special version suitable for cryogenic service. In this case, all the materials and technical features are designed to withstand minimum design temperature required by the Customer, down to Cryogenic -196°C. If required by the customer, specific Cryogenic Tests are performed to verify the behaviour of valves sealing capability and emissions etc. vs the ambient.

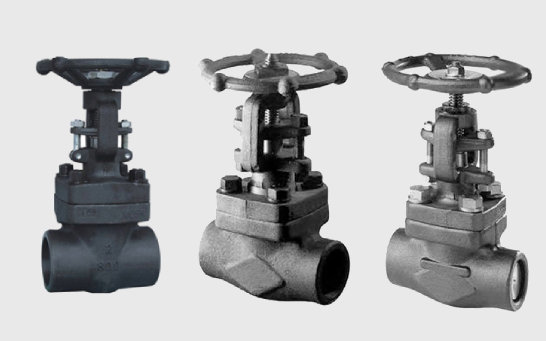

Design Features:

  • Manufacturing Standards-BS-5352/API-602 (Reduced Bore)
  • Socket Weld End As per ANSI B16.11
  • Screwed as per ANSI B 2.1
  • Testing Standard as per BS 6755 PARI/API 598
  • Also Available full bore upto Size 40NB
  • Trim Stellited for 1500# & 2500#
  • Welded Bonnet/Locking Arrangement are optional

Material Of Construction: ASTM A 105/F11/F22, ASTM A 182 F304/316, Alloy Steel Pressure Rating: Class 800/1500/2500 Size Available: 15NB To 50NB

Design Features:

  • Manufacturing Standard – API-600/BS:1414/API 6D/ BS:5150/BS:5163/DIN3352 part 4
  • Face to face as per ANSI B16.10/BS:5150/BS:5163/ class-125/DIN 2532/DIN 2533
  • Ends- Flanged and Drilled as per ANSI B16.5 /ANSI B 16.1,class-125/BS 450 PN-16 /DIN 2532/DIN 2533 RF Butt-welding ends AS per ANSI B16.25
  • Class 300 and Above shall have circular body-Bonnet flange
  • Testing standard : API-598/BS 6755 Part I/DIN 3230/ISO 5208
  • Gear Operated, Actuator Operator Optional
  • By- pass & Body Bleed Arrangement optional.

Material of Construction:Carbon Steel (ASTM A 216 Gr.WCB) Cast iron (ASTM A 216 CI. B) /CF8/CF8M(304,316) Alloy Steel/WC6/WC9/CF3/CF3M. Pressure Rating: Class 150/300/600/900/1500/2500/PN10/PN16 Size Available: 2'' to 48''

Design Features:

  • Manufacturing Standard –BS:1873/ANSI B16.34/BS:5152/BS:5153
  • Face to face as per ANSI B16.10/Class-125/BS:5152
  • Ends- Flanged and Drilled as per ANSI B16.5 RF/ Butt-welding ends AS per ANSI B16.25
  • Class 300 and Above shall have circular body-Bonnet flange
  • Testing standard: API-598/BS 6755 Part I
  • Gear operated, Actuator operator optional
  • By- pass & Body bleed Arrangement optional.
  • Bellow seal Arrangement on request.

Material of Construction: Carbon Steel (ASTM A 216 Gr.WCB) Cast iron (ASTM A 216 CI. B)/CF8/CF8M(304,316) Alloy steel/WC6/WC9/CF3/CF3M. Pressure Rating: Class 150/300/600/900/1500/2500/PN10/PN16 Size Available: 2'' to 48''

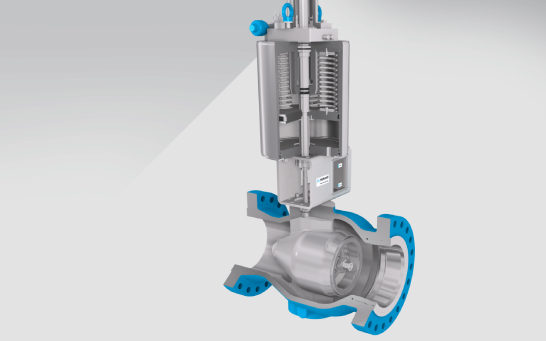

Design Features:

  • ASME B16.34 & SFS EN 12516
  • Testing Standard: ANSI / FCI 70-2
  • Face to Face: As per manufactures standards
  • Flange Fitting: ANSI B16.5, 150#, 300# & 600#

Material of Construction: Carbon Steel WCB MS Fabricated /CF8 (304) CF8M(316) Pressure Rating: Class 150/300 Size Available: 2'' To 10''

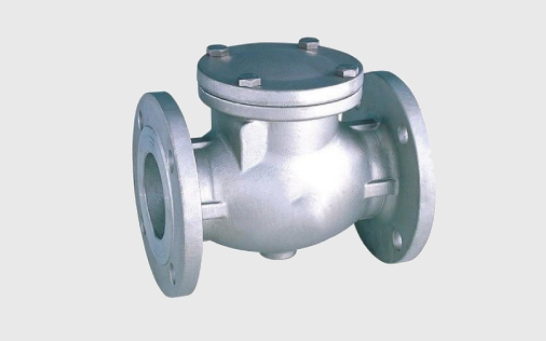

Design Features:

  • Manufacturing Standard –BS:1868/API-6D/BS:5153
  • Face to face as per ANSI B16.10 /Class 125/BS:5253
  • Ends- Flanged and Drilled as per ANSI B16.5 RF /ANSI B 16.1/class 125/DIN PN-16
  • Butt-welding ends AS per ANSI B16.25
  • Class 300 and Above shall have circular body-Bonnet flange
  • Testing standard: API-598/BS 6755 Part- I
  • NON slam/Dash-pot/Bypass Arrangement also Available

Material of Construction: Carbon Steel (ASTM A 216 Gr.WCB) Cast iron (ASTM A 216 CI. B)/Stainless Steel CF8/CF8M (304,316) Alloy Steel/WC6/WC9/CF3/CF3M. Pressure Rating: Class 150/300/600/PN-10/PN-16 Size Available: 2'' to 48''

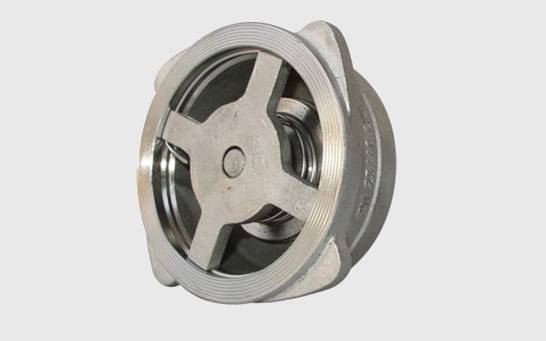

Design Features:

  • Manufacturing Standard API 594/API 6D
  • Face to face as per API 594/API 6D
  • Suitable in between ANSI B16.5 Flanges
  • Test as per BS 6755 Part I
  • Metal to Metal seat optional

Material of Construction: Cast iron(ASTM A 126 CL B) Carbon Steel (WCB/A-105) Stainless Steel 304/316 (CF8/CF8M) Pressure Rating: Class 150/300/600 Size available: 2'' to 24''

Design Features:

  • Working pressure 0 to 800 psi
  • Socket weld end as per ANSI B16.11 / End flanged & Drilled as per ANSI B 16.5 R.F.
  • Screwed end as per ANSI B2.1

Material of Construction: Cast iron (ASTM A 126 CL B) Carbon Steel (WCB/A-105) Stainless Steel (CF8/CF8M)304, 316 /Alloy steel WC6, WC9, Alloy Stainless Steel CF3, CF3M Pressure Rating: Class 150/300 Size available: ½'' To 14''

Design Features:

  • Manufacturing Standard –ANSI B16.34 /DIN 3230
  • Face to face as per DIN 3230
  • Ends- Flanged and Drilled as per ANSI B16.5 RF, Butt-welding ends AS per ANSI B16.25, DIN 323

Material of Construction: Carbon Steel (ASTM A216 Gr.WCB) Cast iron (ASTM A 216 CI. B) Stainless Steel (CF8/CF8M/CF3/CF3M) Alloy Steel (WC6/WC9) Pressure Rating: 150 /300/600, EN 1092 PN 10 to PN 100 Size available: ½'' to 16''

Design Features:

  • Manufacturing Standard –MSS SP 81
  • Face to face as per –MSS SP 81
  • Ends- Flanged and Drilled as per ANSI B16.5 RF
  • Testing Standard : MSS SP 81

Material of Construction: Cast Iron, MS /SS Fabricated Carbon steel (ASTM A216 Gr.WCB) Stainless Steel (CF8/CF8M/CF3/CF3M) Alloy steel (WC6/WC9) Pressure Rating: 150/300 Size available: 2'' to 36''

Design Features:

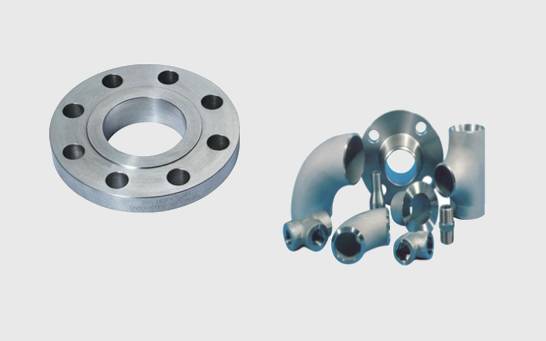

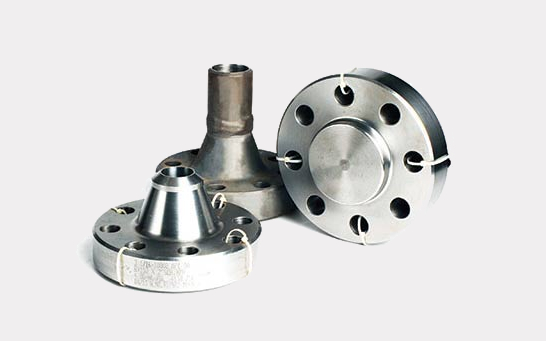

Flanges: (ASME/ANSI Standard B16.5) and the ASTM Specification A-105, Class 150 Series A ASME B16.47, Class 150 Series B ASME B16.47, ANSI B16.21, ANSI B16.36/BS-10 ASA, ISS&DIN /Tee, Reducer & Elbow: ASTM A 234 B 16.9(A-106), ASTM A- 105 B-16.11/BS-6149, /5410, 4310, 1387/BS-1640/As per IS-1879, ISS 1538

Material of Construction: Cast iron (ASTM A 126 CL B) Carbon Steel (WCB/A-105) Stainless Steel (CF8/CF8M) 304, 316 /Alloy Steel WC6, WC9, Alloy Stainless Steel CF3, CF3M Pressure Rating: 150/300/600/900/1500/2500/3000/sch:10 tosch:160 Size available: ½'' To 48''

Design Features:

  • Manufacturing Standard –BS:5351/API 6D
  • Face to Face as per ANSI B16.10
  • Ends- Flanged and Drilled as per ASME B16.5 RF
  • Tested As per BS: 6755 Pat-1
  • Fire safe to API 607 /API 6 FA/BS 6755
  • Locking Arrangement optional

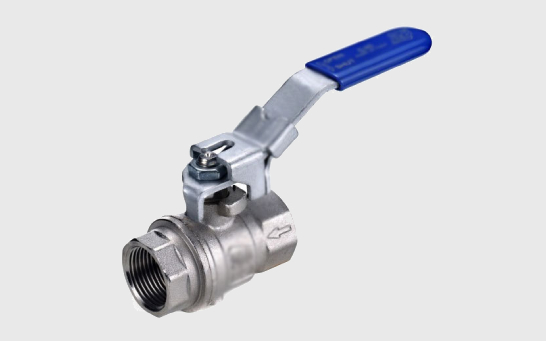

  • Optional gear, Electric Actuator or Pneumatic Actuator
  • Metal to Metal seating optional
  • Anti Static Device Optional
  • Reduce Bore Valves Available
  • Butt welding ends with extended pipe o request
  • Peak seat on request
  • Available in class 900# & 1500#
  • Available in Trunion Mounted design

Material of Construction: Cast iron (ASTM A 216 CI. B )/ Carbon Steel (ASTM A 216 Gr. WCB)A105 / Gun metal/ investment casting Stainless Steel (CF8,CF8M)304/316 Pressure Rating: CS:150/300/600/Forged:800/1500/2500 Size available: 1/2'' to 24''

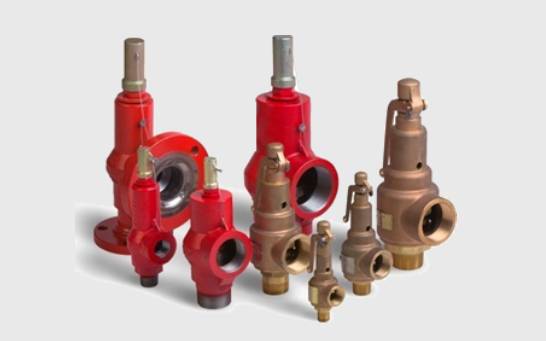

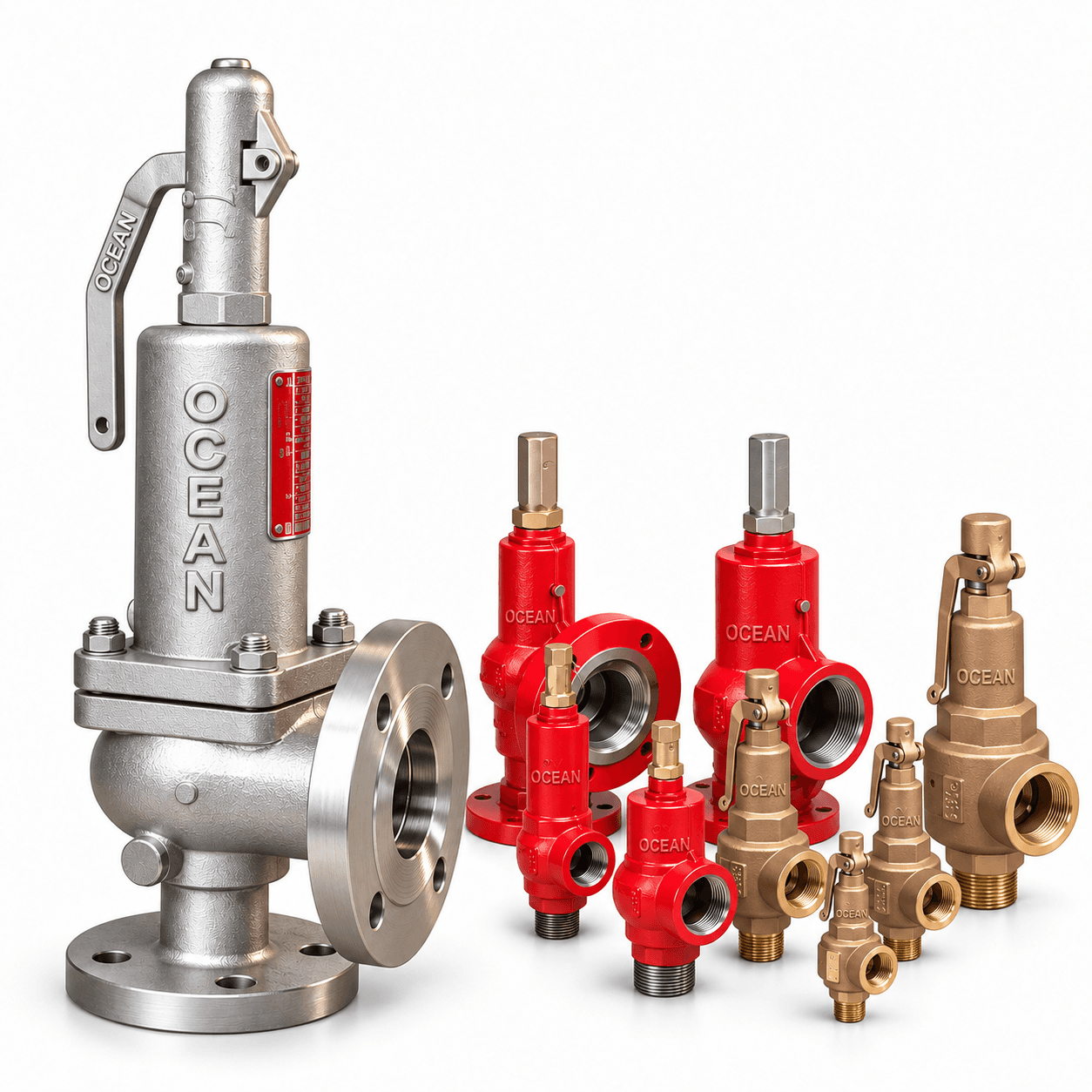

Design Features:

  • Manufacturing Standard –API 526
  • Ends- Flanged and Drilled as per ASME B16.5 RF
  • Body Hydrostatic Test pressure –twice the set pressure
  • Set pressure Range 1 Bar To 100 Bar
  • Test as per ASME code section VIII Division 1.
  • Packed lever and tested Tag optional
  • Balanced Bellows with Auxiliary Balancing piston on request
  • Large orifice valves available
  • Steam Jacketed optional
  • Soft seated valves are Available for low temperature and critical service
  • Test Tag on request
  • Packed Lifting Lever on request
  • Packed Lifting lever with Test tag on Request
  • Commercial seat tightness procedure as per AP 527
  • For high pressure nominal bore will be reduce bore
  • Ends screwed NPT/BSPT/API 5B

Material of Construction: Cast iron (ASTM A 126 CL B) Carbon Steel (WCB/A-105) Stainless Steel (CF8/CF8M) 304, 316/Alloy steel WC6, WC9, Alloy Stainless Steel CF3,CF3M Pressure Rating: Set Pressure o.3kg/cm² to 300kg/cm², Low set pressure Limits for safety relief valve: 0.35,1.75 Size available: ½'' To 12''
